What is an Automatic Transmission, and How Does it Work?
Because we use them every day, the operation of a car seems simple, but a car is a very complex machine. One of the most complex systems in the typical vehicle is the automatic transmission. This ingenious system performs a function—changing gears—that the driver would otherwise have to do. An automatic transmission executes gear changes automatically, so many drivers don't have a good sense of what this component is and what it does. But understanding how an automatic transmission works can make you a better driver and give you a better appreciation of what your car can do.
Why Automobiles Need Transmissions
You don't need to be a technological genius to understand why a car needs an engine. It provides the motive force to move the vehicle. And it is also pretty evident that it is critical to get the motive force from the engine to the wheels to drive the car. The system that does that is called the transmission. But there's more to it than a simple mechanical hookup between the engine and drive wheels.
An internal combustion engine creates power and torque in a very narrow operating range. This necessitates that the car has gears that enable the engine to operate in its range as the vehicle accelerates, reaches a constant cruising speed, and decelerates. Without that, a car's speed potential would be extremely limited.
In an internal combustion engine car with a manual transmission, the driver changes the gears. A reasonably straightforward mechanical arrangement enables the driver to use a shift lever to choose the individual gear from among a selection of gears appropriate for the immediate driving situation. Manual shifting between gears requires the frequent disconnection of the engine from and reconnection to the driving mechanism—the propellor shaft and half-shafts that go to the drive wheels—during any drive. The mechanical clutch is the means of disconnection and reconnection. It is foot-operated using the car's clutch pedal. Changing gears requires dexterity and footwork. Though doing it well can be fun, it also takes effort.
From Manual to Automatic Transmissions
It didn't take long for automotive pioneers to begin tinkering with the idea of automating the gear-changing process. Doing so would simplify driving and open the freedom and convenience of personal transportation to those lacking the skill or strength to change gears manually using the typical process. But it wasn't until the 1930s that General Motors engineers developed a practical system of making automatic gear changes. That system was what we now call the automatic transmission.
Though the design has been refined over the years—most recently by the addition of electronic controls—the original engineering concept of the 1930s remains the basis of the automatic transmissions that change gears in today's cars, trucks, vans, and SUVs.

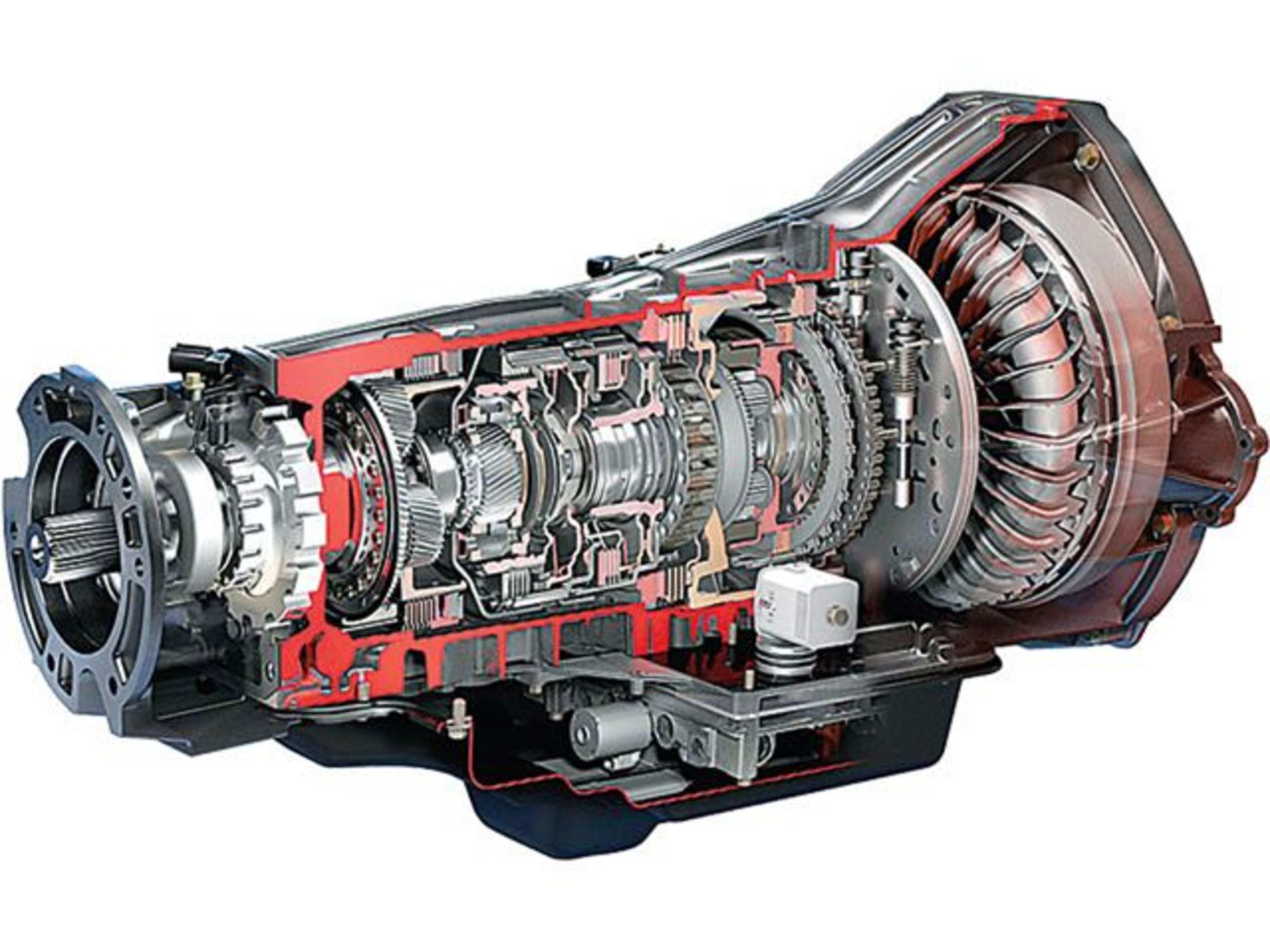

Key Components of Automatic Transmissions
An automatic transmission does something that is simple to describe in words. It changes gears without direction from the driver, aside from choosing Drive, Reverse, Neutral, and Park. But getting that to happen involves many components that must work in harmony in a variety of conditions over and over and over again. Here are the key elements:
Torque Converter
A torque converter was a fundamental breakthrough leading to the development of a practical automatic transmission.
A torque converter essentially performs the function that a mechanical clutch does in a manual transmission. It enables the engine connection to and disconnection from the driveline as needed to facilitate the changing of gears.
The use of fluid dynamics can transfer torque from the engine when needed by the car to move forward, but it will essentially soak up that torque when moving forward is not desired.
This capability enables you to leave your car in Drive while you have your foot firmly on the brake when stopped at a stoplight. When you release the brake, the torque converter enables the car to creep forward.
Planetary Gears
If your car had a torque converter and a single forward gear, your forward speed would be severely limited by the engine's operating range and torque production ability. That is why gear-changing is necessary.
An automatic transmission uses a different type of gearset than a manual transmission vehicle. It uses a set of planetary gears to create several gear ratios as the automatic transmission's hydraulics controls them.
Brake Bands and Clutches
Brake bands and clutches actuate the changing of gears in the planetary gearset. Brake bands tighten to hold a particular gear stationary or loosen to enable that gear to spin. And it is the combination of stationary and spinning gears in the gearset that produces each individual gear ratio.
The clutches in the transmission have a similar function, helping to determine the particular ge
May 29, 2025
type & brake system brake

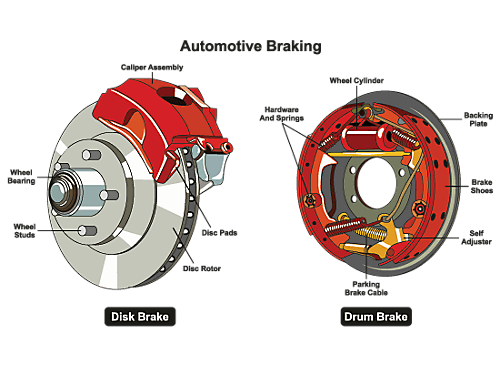

Types of Car Brakes
One of the most important safety systems in a car is its brakes, which are responsible for stopping the vehicle and slowing it down. Brake systems have evolved over the years, becoming safer and more efficient. Car brakes are classified into two main types: disc brakes and drum brakes.
Disc brakes: These are the most common in modern cars. They consist of a metal disc mounted on the wheel, which is pressed by calipers containing brake pads when the brake pedal is depressed. These brakes are highly effective and dissipate heat better, preventing thermal wear.
Drum brakes: These were widely used in older cars, but are becoming less common. They consist of a metal cylinder containing brake pads. When the brake pedal is depressed, the cylinders expand, pushing the pads against the cylinder walls to stop the rotation. These brakes are simple and inexpensive, but they are less efficient than disc brakes in terms of cooling and heat dissipation.
Automotive Braking Systems
A vehicle's braking systems consist of a combination of mechanical and electronic components that work together to slow down or stop the vehicle. These systems are constantly evolving to become safer and more effective. In addition to conventional brakes, there are a number of auxiliary systems, such as the Anti-lock Braking System (ABS) and Electronic Brake-force Distribution (EBD), which improve braking performance under various conditions. This provides the driver with greater control over the vehicle and thus reduces the risk of accidents.
In addition to the basic types, there are several electronic systems that work together to improve performance and safety, such as:
Anti-lock Braking System (ABS), which prevents the wheels from locking up during sudden braking, maintaining the driver's ability to control the vehicle.
Electronic Brake-force Distribution (EBD), which distributes braking force between the front and rear wheels to improve stability and control.
Brake Assist System (BAS), which increases braking force in emergency situations to help bring the vehicle to a quick stop.
Electronic Stability Program (ESP), which maintains vehicle stability on curves and in slippery conditions.
May 29, 2025

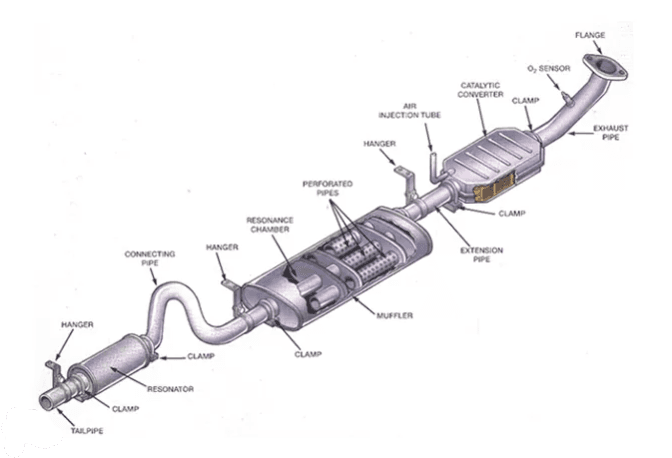

Muffler and Exhaust Pipe Assembly
Muffler and Exhaust Pipe Assembly
The muffler and exhaust pipe assembly is a key component in your vehicle, playing a crucial role in managing engine emissions while also affecting overall performance and sound quality. This assembly consists of several components that work seamlessly together to achieve their purpose. Below, we'll discuss the technical functions, connections to other components, and the specifics of the parts included in this assembly.
Technical purpose of muffler and exhaust pipe
The primary function of the exhaust system, including the muffler and tailpipe, is to direct harmful gases away from the engine and passenger cabin, ensuring safety and environmental compliance. The exhaust system is designed to:
Emission Control: The exhaust system helps reduce the levels of harmful gases emitted into the atmosphere, in compliance with environmental regulations.
Noise reduction: The muffler reduces engine noise, ensuring a quieter driving experience.
Improved Performance: A well-functioning exhaust system can enhance engine efficiency and horsepower by allowing exhaust gases to exit the engine more freely.
Connection to other components: The exhaust system connects to various other components, including the catalytic converter, oxygen sensors, and the engine block, forming an integral part of the vehicle's overall function.
Reflector and Exhaust Pipe Assembly Components
The reflector and exhaust pipe assembly includes various parts, each with its own distinct characteristics and functions. The basic components are as follows:
Reflector: The reflector is designed to reduce the sound of exhaust gases exiting the engine. It uses a series of chambers and baffles to reduce noise while maintaining exhaust flow.
Exhaust pipe: This pipe directs exhaust gases from the engine to the rear of the vehicle. It is often made of high-quality stainless steel or steel treated to withstand extreme conditions of heat and humidity.
Catalytic Converter: Although technically separate from the inverter, the catalytic converter plays a key role in converting harmful gases into less harmful emissions before they exit the exhaust pipe.
Exhaust gasket: A sealing component that prevents exhaust leaks between the deflector and the exhaust pipe, ensuring efficiency and safety.
Brackets and Supports: These components support and secure the reflector and exhaust pipe, ensuring proper alignment and function during vehicle operation.
Contact other nodes
The muffler and exhaust pipe are not independent components; rather, they are intricately connected to several other nodes in a vehicle's exhaust system:
Engine block: The assembly connects to the engine block, where the exhaust gases are expelled after combustion.
Catalytic Converter: Located between the engine and the damper, the catalytic converter plays a crucial role in reducing harmful emissions before they reach the damper.
Oxygen sensors: These devices provide the engine control unit (ECU) with information about the air-fuel mixture, allowing adjustments to be made that enhance performance and reduce emissions.
Exhaust port: The exhaust port collects exhaust gases from several cylinders and directs them toward the exhaust pipe, representing one of the first stages in the exhaust process.
Repair, install, or replace exhaust and tailpipe
Over time, factors such as road conditions, humidity, and engine efficiency can cause wear on the exhaust system and exhaust pipe. Repair, installation, or replacement may be necessary in the following cases:
Increased noise: A noticeable increase in engine noise could indicate a failing exhaust that may require replacement.
Emissions warning lights: If your check engine light is on, it could be due to exhaust leaks affecting emissions, often related to the exhaust or catalytic converter.
Visible Damage or Rust: Physical inspections may reveal rust or holes in exhaust parts, indicating a need for immediate attention.
Uneven exhaust flow: Any changes in engine performance or vibrations felt while driving may indicate blockage or damage to the exhaust system.
Technical characteristics of the filter and exhaust pipe components
Below are the technical specifications of the main parts included in the strainer and exhaust pipe assembly:
Refinery:
Material: Aluminized steel or stainless steel
Dimensions: Varies by model and fit
Sound Level: Designed to reduce noise while maintaining performance
Exhaust pipe:
Material: Usually made of stainless steel or aluminized steel for durability.
Diameter: Typically 2 to 3 inches, depending on engine requirements.
Length: Designed to fit specific Vehicle models
Catalytic converter:
Material: Ceramic or metal substrate
Function: Converts harmful pollutants into less harmful emissions.
Compliance: Must meet local emission standards.
Exhaust gasket:
Material: Usually made of high temperature resistant material.
Thickness: Typically 1/8 to 1/4 inch
Purpose: Ensures a secure, leak-free connection between the strainer and the pipe.
Pendants and supports:
Material: Steel or rubber for durability
Function: Supports and maintains the position of exhaust system components.
Design: Designed to reduce vibration and movement.
Conclusion
Your car muffler and exhaust pipe assembly is a vital component that plays a crucial role in the overall performance and safety of your vehicle. Understanding its technical purpose, associated components, and the implications of repair or replacement can significantly enhance your vehicle maintenance efforts. Whether you're looking to replace an old muffler, upgrade to a high-performance exhaust system, or simply need a gasket replacement
May 23, 2025
Causes of Car Overheating and How to Treat It
Car overheating is a common problem that can occur to any driver. It's important to understand the causes of engine overheating and how to deal with it to avoid damage to your car.
Causes of Car Overheating:
Lack of Coolant:
One of the most common causes is a lack of coolant (water and radiator). This can be caused by leaks or evaporation.
Cooling System Problems:
This can include a damaged radiator, a damaged radiator hose, a water pump issue, or a faulty cooling fan.
Engine Oil Problems:
A low level of engine oil or poor quality can lead to increased friction and overheating.
Clogged Radiator:
A buildup of dirt and debris in the radiator can impede coolant flow.
Faulty Thermostat:
If the thermostat isn't working properly, coolant may not flow properly, leading to overheating.
Hard Driving:
Driving at high speeds for extended periods or in harsh conditions can put additional stress on the cooling system.
Symptoms of Overheating:
High engine temperature gauge:
Indicates that the engine temperature is higher than normal.
Engine steam:
May be a sign of overheating and a coolant leak.
Crackling or strange engine noises:
This may be a result of engine parts expanding due to heat.
Burning smell:
This may be the smell of burning oil or burning coolant.
Poor engine performance:
The driver may notice a loss of power or slow response.
What to do when your car overheats:
Stop in a safe place: If you notice an overheating, stop in a safe place away from traffic.
Stop the engine: Do not restart the engine until it has cooled.
Let the engine cool: Allow the engine to cool completely before checking the coolant or oil level.
Check the coolant level: If it is low, add more appropriate coolant.
Look for leaks: Look for any signs of coolant or oil leaks.
Do not open the hood if steam is present: It may be very hot and could cause burns.
Seek help: If you're unsure how to handle the problem, contact an auto technician.
Avoid driving when the temperature is high:
Avoid driving at high speeds: This may exacerbate the problem.
Turn on the air conditioning: If possible, this may help cool the engine.
Avoid driving for long periods: Try to take breaks to allow the engine to cool down.
Additional tips:
Check the cooling system regularly:
Check the coolant and engine oil levels regularly.
Replace the coolant regularly:
Follow the manufacturer's recommendations for coolant replacement.
Perform regular vehicle maintenance:
Make sure your vehicle is inspected regularly by a service technician.
March 24, 2025

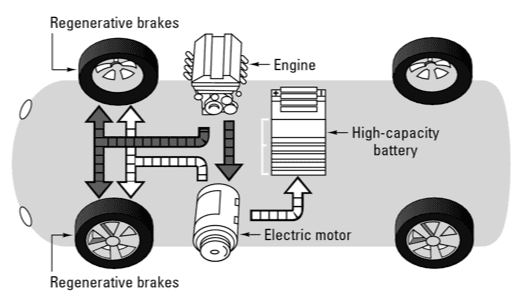

How Hybrid Cars Work
Hybrid cars operate by combining a conventional internal combustion engine and an electric motor, which can work together or separately to power the vehicle. The electric battery is mostly charged by regenerative braking (recovering energy during braking) and the internal combustion engine, rather than by connecting the vehicle to an external power source.
Detailed Explanation:
Two Engines in One Car:
Hybrid cars have two engines: an internal combustion engine (fuel-powered) and an electric motor. The two engines work together to provide the power needed to move the vehicle, or one may operate independently depending on driving conditions.
Regenerative Braking:
When the brakes are applied, the electric motor converts some of the kinetic energy into electrical energy to be stored in the battery. This process is called regenerative braking and helps charge the battery without the need to connect the vehicle to a power source.
Internal Combustion Engine and Charging:
The internal combustion engine also charges the battery in addition to providing the vehicle's propulsion power.
Fuel Consumption Savings:
By using the electric motor at low speeds and during city driving, and saving energy during braking, hybrid vehicles help reduce fuel consumption and improve energy efficiency.
Smooth Driving:
The transmission seamlessly combines the power from both engines to ensure a comfortable ride.
Different Operating Systems:
Hybrid vehicles can operate in different ways. Some rely on the electric motor at low speeds, while others rely on both engines together to achieve maximum power. The operating method varies depending on the vehicle type.
March 19, 2025

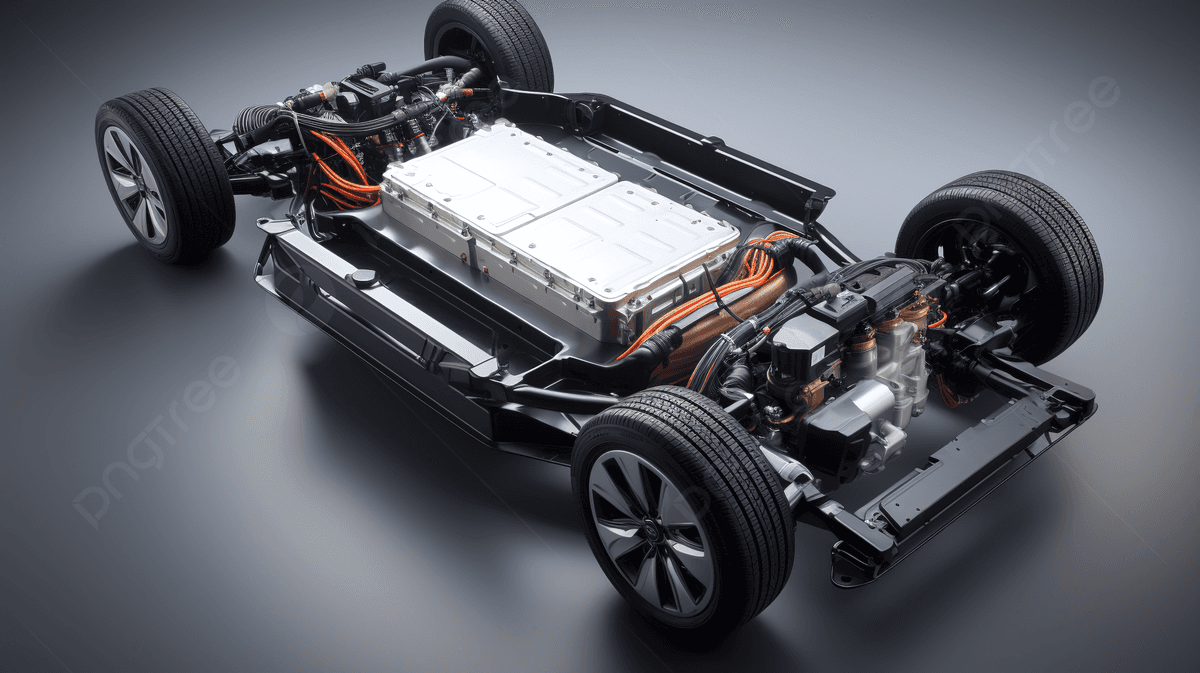

Learn how an electric car works
Electric cars have become a symbol of the transition to a sustainable and innovative future in the world of transportation. Thanks to advances in technology and growing concern for the environment, these cars have become increasingly popular among individuals and businesses alike. Electric cars offer a quiet and economical driving experience, while reducing harmful emissions compared to conventional vehicles. In this article, we will highlight their advantages, the most prominent challenges they face, and how they are contributing to reshaping the concept of modern transportation.
What is an electric car?
Electric cars operate on the principle of converting electrical energy into mechanical energy, which is then used to generate kinetic energy. Electric cars feature an electric motor instead of a conventional fuel engine, thus replacing conventional fuel (gasoline/diesel). The electric motor converts the electricity stored in the battery into mechanical energy.
To put it this way, a conventional fuel-powered vehicle (gasoline/diesel) consists of basic components such as an engine, transmission, and fuel tank. Now, when looking at an electric vehicle, the internal combustion engine is replaced by an electric motor, and the fuel tank is replaced by a battery pack. The transmission remains the same, although electric vehicles have a different, simpler gear arrangement.
The battery stores electrical energy when charging and then uses the stored energy to power the electric motor and other components. The controller manages the flow of electrical energy to the motor, adjusting the flow of electricity based on the pressure applied to the accelerator pedal.
The electric motor receives energy from the battery and converts it into mechanical energy. The transmission transfers the mechanical energy from the engine to drive the wheels. Some electric vehicles generate regenerative braking energy, which is returned to the battery during braking or deceleration.
The battery pack can be charged via the charging port. The on-board charger converts alternating current (AC) to direct current (DC). You can charge the battery by connecting the car's charging port to an external power source. The car is also equipped with an additional battery to power car accessories and other components. The additional battery is recharged via a DC-to-DC converter, which converts the high-voltage current from the battery pack to a lower voltage current.
How does an electric car's motor work?
The electric motor plays the role of a conventional motor in internal combustion vehicles. Automakers use AC motors in electric cars, meaning the motor runs on alternating current (AC).
When you press the accelerator pedal, the power electronics control unit (PEC) controls the flow of electrical power to the electric motor.
The amount of current required to start the motor varies depending on the pressure applied to the accelerator pedal. Once the motor receives power, the rotors of the motor begin to spin, producing mechanical energy. The mechanical energy generated by the motor then turns the gears or transmission.
The transmission simply transfers mechanical energy to the wheels. The electric motor is the heart of an electric vehicle's propulsion system, converting electrical energy into mechanical energy that the transmission uses to drive the wheels.
How can an electric vehicle be charged?
An electric vehicle is equipped with a charging port and an onboard charger that converts AC power to DC power. There are different types of car chargers with different types of connectors depending on the brand and battery capacity. However, the basic principle of charging a vehicle remains the same.
You can charge the vehicle by connecting it to an external power source, which can be a home charger or a charger at charging stations. Electric vehicle charging is divided into three types based on the capacity of the electrical energy flow.
Type 1 Charging
This is charging the electric vehicle via a regular 120-volt power outlet at home. You can plug the charger into the power outlet and allow the battery to charge overnight, depending on the battery capacity.
Type 2 Charging
This is the most common type used at public charging stations. You can also install a Type 2 charging station at home. It uses a 240-volt power outlet and reduces charging time compared to Type 1 charging.
Type III Charging:
This system uses DC fast chargers. Electric vehicle manufacturers typically build DC fast charging stations. Charging speeds are faster (usually just over an hour for a full charge). However, the electric vehicle must be compatible with fast charging to benefit from a Type III charger.
Advantages of Electric Vehicles
Electric vehicles offer numerous advantages over conventional internal combustion engine vehicles, making them an increasingly popular choice among consumers. Here are some of the key advantages:
Environmental Benefits: Electric vehicles produce zero tailpipe emissions, significantly reducing air pollution and greenhouse gas emissions. This contributes to improved air quality and helps combat climate change.
Lower Operating Costs: Charging an electric vehicle is generally more cost-effective than refueling a gasoline or diesel-powered vehicle. Additionally, electric vehicles have fewer moving parts, resulting in lower maintenance costs over time.
Energy Efficiency: Electric vehicles are highly efficient, converting a greater percentage of electrical energy from the grid into power at the wheels than conventional vehicles.
Quiet Operation: Electric vehicles operate more quietly than conventional vehicles, contributing to reduced noise pollution in urban areas.
Government Incentives: Many governments offer incentives such as tax breaks, rebates, and access to carpool lanes to encourage the adoption of electric vehicles.
Convenient Home Charging: Owners can charge their electric vehicles at home, eliminating the need for frequent trips to gas stations and providing the convenience of starting each day with a full charge.
Reduced Dependence on Fossil Fuels: By harnessing electricity, particularly from renewable sources, electric vehicles help reduce dependence on fossil fuels, promoting energy independence and sustainability.
These advantages make electric vehicles a compelling choice for those looking to reduce their environmental impact and enjoy the benefits of modern automotive technology.
Disadvantages of Electric Vehicles
Electric vehicles offer many benefits, but they also come with some drawbacks that potential buyers should consider:
Limited Driving Range: Many electric vehicles have a shorter driving range than conventional gasoline-powered vehicles, which can be a concern for long-distance travel.
Charging Infrastructure: The availability of charging stations varies by region, and in some areas, the infrastructure may not be sufficiently developed, leading to “charging anxiety” among drivers.
Long Charging Times: Recharging an electric vehicle can take significantly longer than refueling a gasoline-powered vehicle, especially when using standard home chargers.
Higher initial costs: The upfront purchase price of electric vehicles is often higher than that of conventional vehicles, primarily due to the cost of the batteries.
Battery lifespan and replacement costs: While electric vehicle batteries are designed to last for many years, they can deteriorate over time, potentially leading to costly replacement.
Depreciation: Some electric vehicles depreciate more quickly than conventional vehicles, which can impact resale value.
Environmental concerns: The production and disposal of electric vehicle batteries pose environmental challenges, including resource extraction and potential pollution.
It is important for potential electric vehicle owners to weigh these factors against the benefits to determine if an electric vehicle is a good fit for their needs and circumstances.
What types of electric vehicles are there?
Electric vehicles (EVs) are classified based on their propulsion systems and the extent to which they use electrical energy. The basic types include:
Battery Electric Vehicles (BEVs)
Description: BEVs are powered solely by electricity, do not have an internal combustion engine, and rely entirely on rechargeable batteries to power the electric motor.
Charging: These vehicles require external charging through Level 1 (standard household outlets), Level 2 (dedicated home or public chargers), or DC fast charging stations.
Examples: Tesla Model 3, Nissan Leaf, Chevrolet Bolt EV.
Plug-in Hybrid Electric Vehicles (PHEVs)
Description: PHEVs combine an electric motor with an internal combustion engine and can operate in all-electric mode for a certain distance before the gasoline engine is engaged.
Charging: The battery can be recharged from external power sources, similar to battery electric vehicles, and through regenerative braking.
Examples: Chevrolet Volt, Toyota Prius Prime, Ford Fusion Energi.
Hybrid Electric Vehicles (HEVs):
Description: HEVs feature an internal combustion engine and an electric motor. The electric motor assists the engine, improving fuel efficiency and reducing emissions. Unlike HEVs, HEVs cannot be charged externally; the battery is charged through regenerative braking and the engine.
Examples: Toyota Prius, Honda Insight, Ford Escape Hybrid.
Fuel Cell Electric Vehicles (FCEVs):
Description: FCEVs generate electricity onboard using a hydrogen fuel cell, emitting only water vapor and warm air, providing an emissions-free driving experience.
Refueling: Refueling involves filling the hydrogen tank at specialized stations, a relatively quick process compared to charging batteries.
Examples: Toyota Mirai, Hyundai Nexo, Honda Clarity FuelCell.
Each type of electric vehicle offers distinct advantages and considerations regarding range, fueling infrastructure, and environmental impact, and understanding these differences is critical for consumers when choosing a vehicle that aligns with their driving needs and sustainability goals.
How long does an electric car battery last?
The average lifespan of an electric car battery ranges from 15 to 20 years, depending on how the car is used.
March 19, 2025
The Future of Electric Motorcycles: What to Expect in 2025
How leading brands are revolutionizing the industry with new battery technology and AI integration.
March 19, 2025
The Future of Electric Motorcycles: What to Expect in 2025
How leading brands are revolutionizing the industry with new battery technology and AI integration.
